Bläk 740 New York

Alcove fitting with a fixed wall and hinged door

Delivery in 2 weeks

10-year warranty

Product description

Install

Bläk 740 New York

Alcove fitting with a fixed wall and hinged door

Choose frame color

(Options)

The profiles mounted to the edges of the panel are manufactured of aluminium. Profiles are painted black (RAL 9005) through powder coating.

The fittings used in the product, like square foot and brace bars, are brass alloy painted black.

Choose glass color

(Options)

Choose product size

(Options)

Choose accessories

Product

Product code

Price

1: Bläk 740 New York

740-91-B4

0,00 €

2: Bläk 711 Alcove fixed screen
Black painted/Transparent/A=709 x 1950

711 91 0069

480,00 €

3: Bläk 712 Alcove hinged door
Black painted/Transparent/B=707 x 1950

712 91 0069

530,00 €

4:     Tuning leg

701 RL 0011

0,00 €

5:     Magnet seal

705 RL 0004

45,00 €

TOTAL



1055,00 €

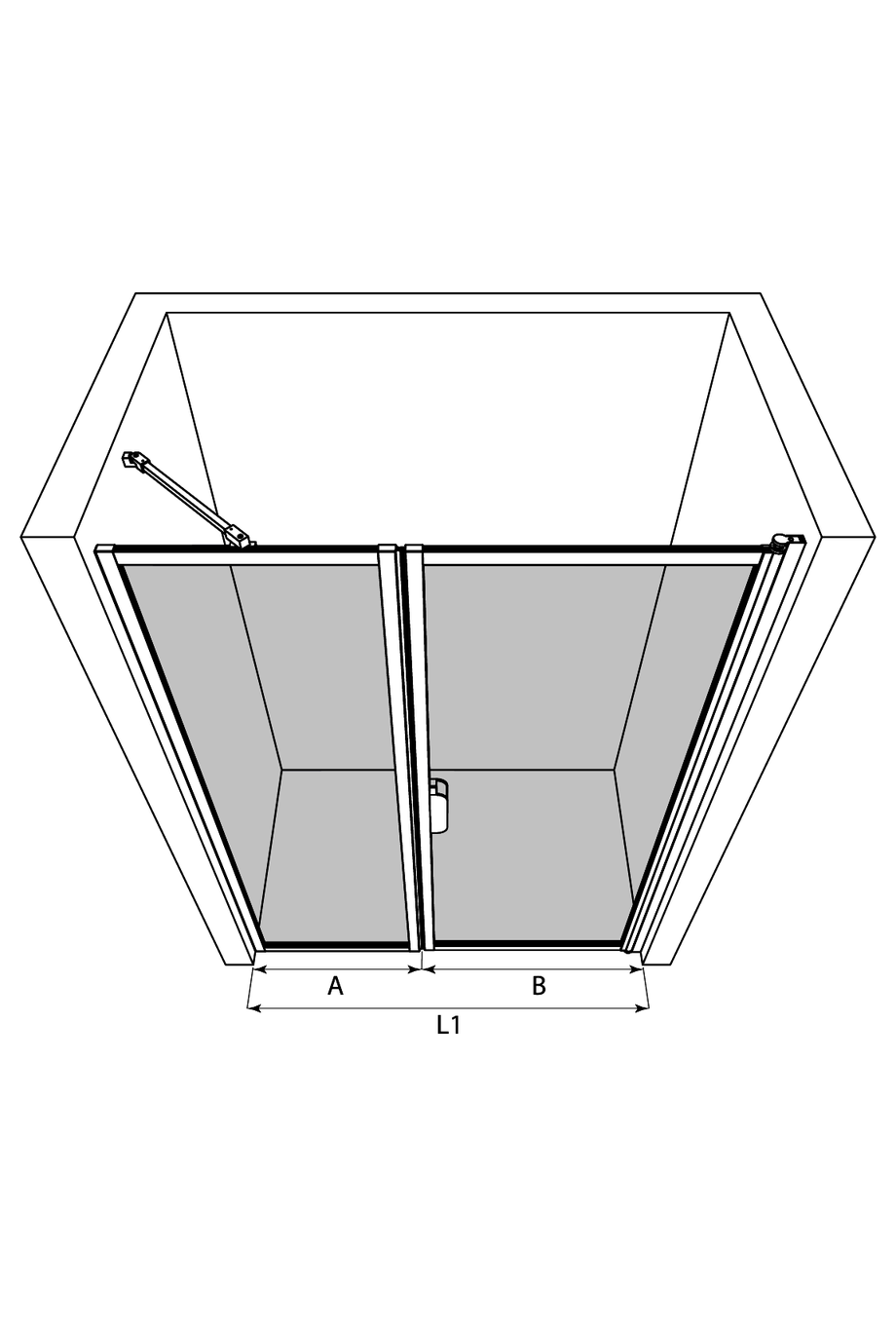

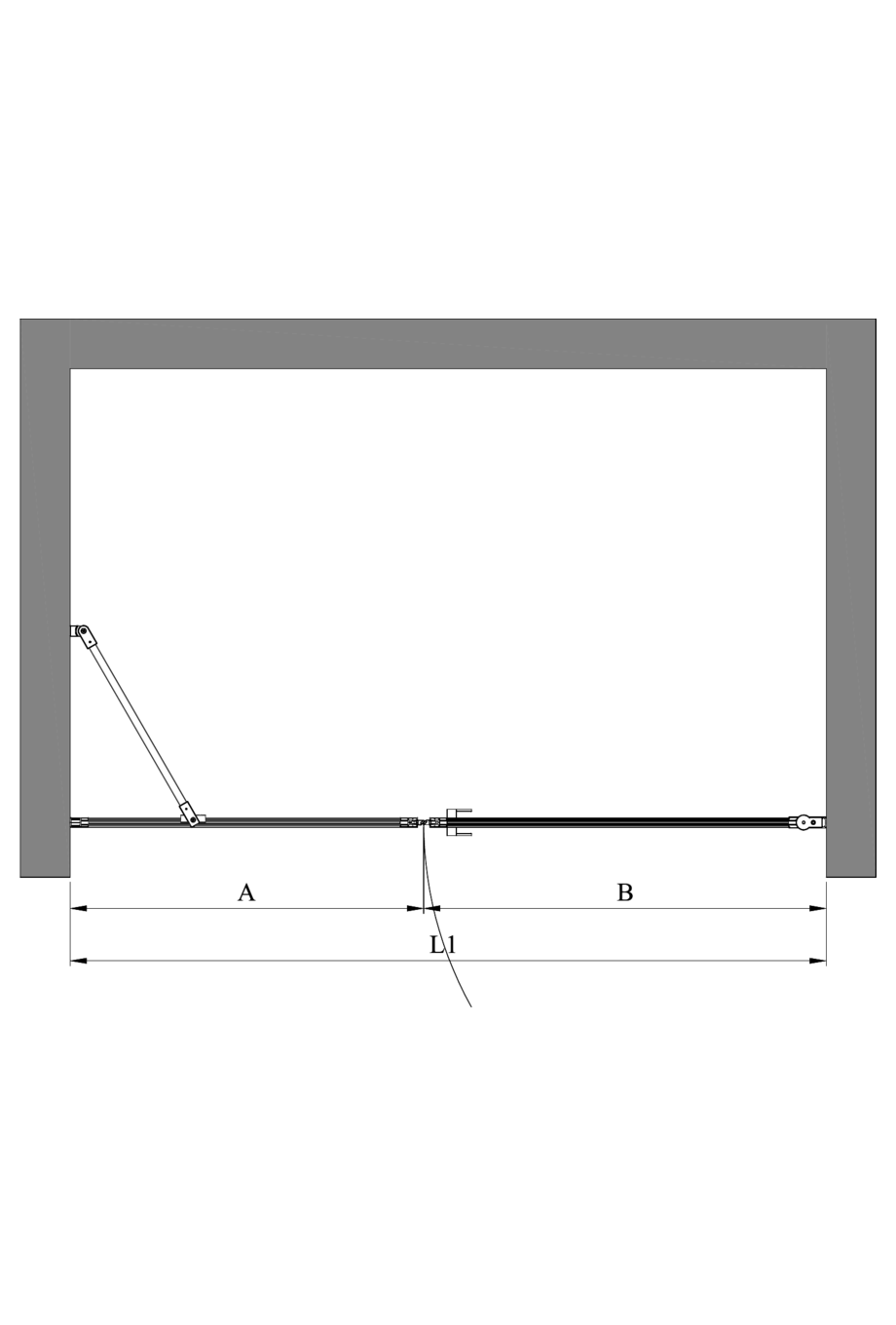

The selected combination can be installed into the opening (L1) the width of which is:

- At is narrowest: 1416mm

- At its widest: 1438mm

Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.
