Forma 327 (303+305)

Alcove fitting with a hinged double door where one of which has a fixed part

The Alcove fitting configuration consists of a folding door and a fixed wall into which a hinged folding door. The product is well-suited for a shower enclosure a shower enclosure where doors may not have the space to properly open outwards and on the other side of which the space is cramped also on the inside of the shower area. Folding door does not require space for opening from outside the shower area but instead folds into the small space inside the shower area in the direction of the building wall. Fixed wall can be dimensioned according to the fixtures (e.g. the mixer) inside the shower area so that the door does not hit the fixtures when being folded. Doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned in the direction of the building walls.

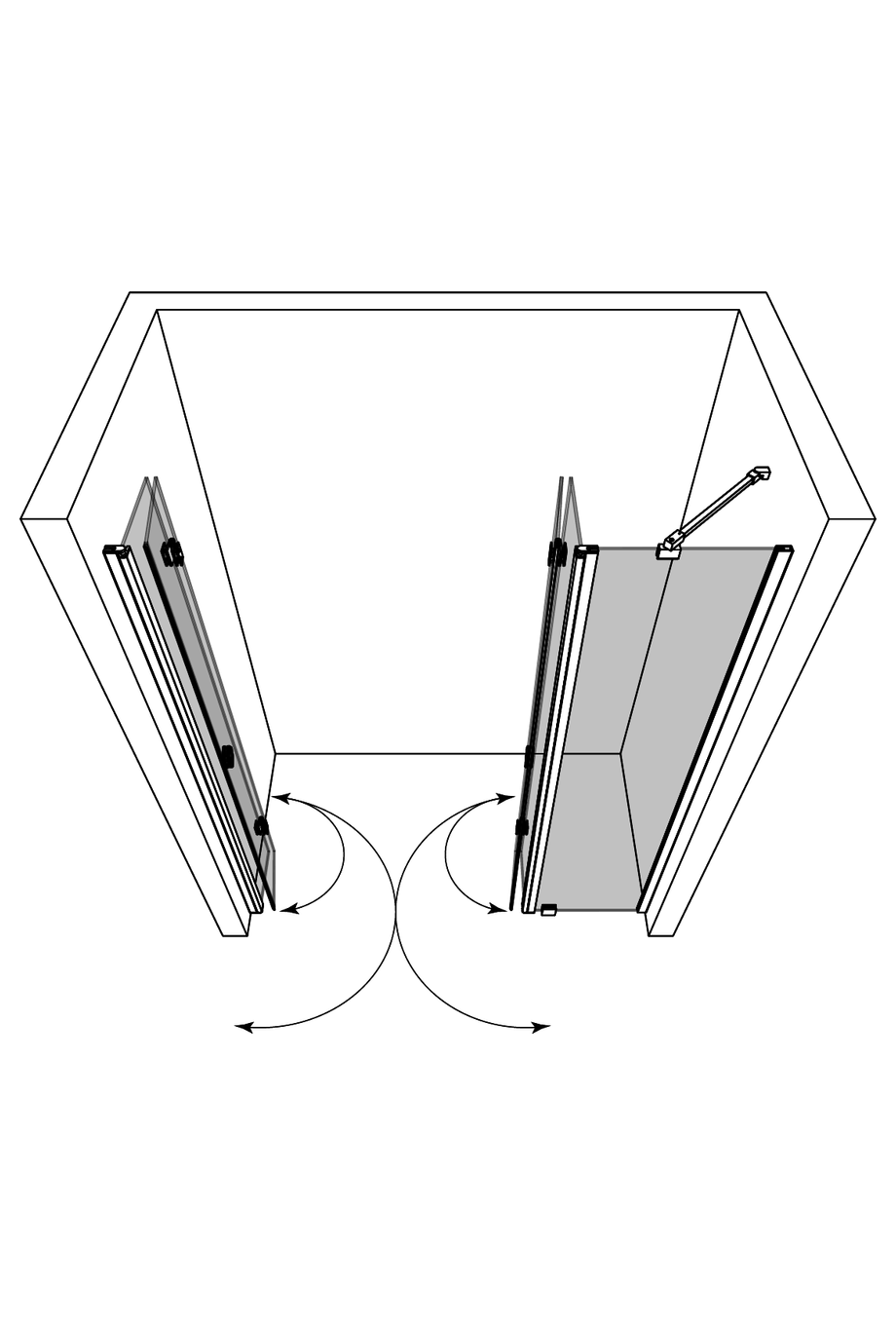

Doors rotate 90 degrees in both directions and are equipped with adjustable centrings. The function of the centring is to return the door to the open and closed positions. positions. In addition, the outermost panels turn in relation to the innermost panels so that the panels of the doors fold against each other to the internal side of the shower area. A pair of magnet handles keeps the doors tightly closed during showering.

Shower wall and door are attached to the walls of the building from the sides by means of wall mountedprofiles. The fixed wall is supported from the top edge by the brace bar installed in the corner and from the bottom corner by the fitting glued to the floor. There will be a 25mm gap between the panel and the floor of the fixed wall. A seal (standard part) may be installed between the panel and the floor in order to prevent water from flowing under the panel. Floor seals , which limit the flow of water, can be installed along the bottom edge of the door panel. Installation guide

Installation
Icon

12 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey is an anodized coating. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are according to the profile colours and made from brass alloy.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear glasses are smooth surfaced and transparent panels. Reeded panels consists of parallel bands which diffuses the light such that image behind is not completely clear. Satin panels are not fully transparent, details cannot be made out through the panel. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains. Reeded glass is only available in standard sizes.

The size of the alcove fitting can be selected from the standard sizes or it can be manufactured using custom dimensions. The wall mounted profiles have the total of 35mm adjustment tolerance The adjustment tolerance can be used for levelling any tilt in the building’s walls as well as for accommodating the alcove fitting into the installation opening. For the purposes of accommodating the fitting into the opening, one or more extension profiles (optional accessory). One extension profile extends the width of the alcove fitting by 34mm and it can be grooved for example for the inlet of the surface water pipes.

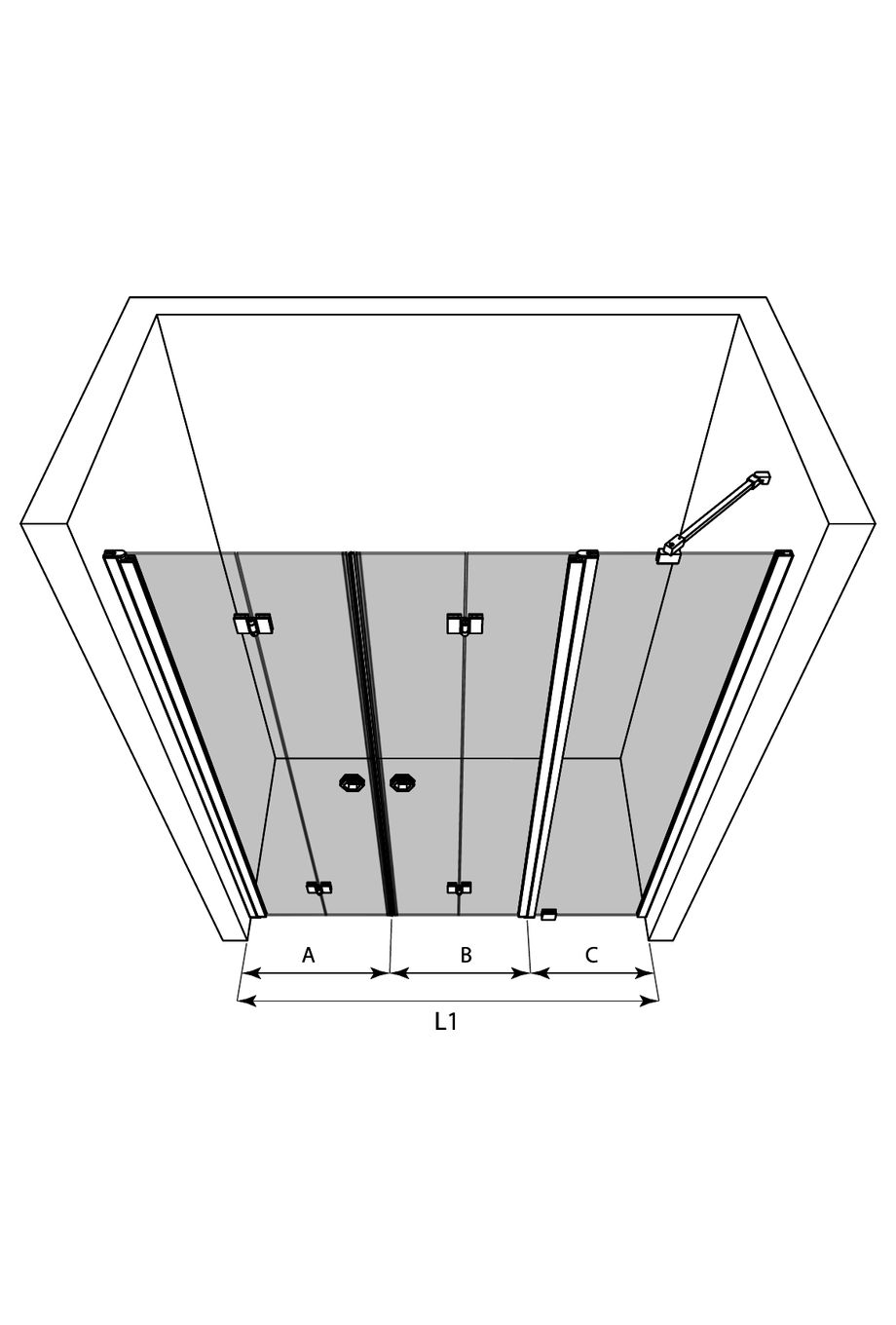

Product size

Alcove folding door (A)

X

Alcove folding door (B)

X

Alcove fixed screen (C)

X

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1552mm
- At its widest: 1587mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:


Please select handle colour.

Product

Product code

Price

1

Forma 327

Product code

327-61-111

Price

0.00 €

2

Forma 303 Alcove folding door
White painted/Transparent/A=597 x 2025

Product code

303 61 0058

Price

695.00 €

3

Forma 305 Alcove folding door
White painted/Transparent/B=575 x 2025

Product code

305 61 0056

Price

460.00 €

4

Forma 304/305 Alcove fixed screen
White painted/Transparent/C=380 x 2025

Product code

304 61 0038

Price

350.00 €

5

Magnet seal pair

Product code

F06 6L 0001

Price

45.00 €

6

TOTAL

Product code

Price

1550.00 €

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1552mm
- At its widest: 1587mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:

EAN: 6418379968700
