Infinia 238 (211+213)

Alcove fitting with a fixed wall and folding door

Delivery in 2 weeks

10-year warranty

Product description

Install

Infinia 238 (211+213)

Alcove fitting with a fixed wall and folding door

Choose frame color

(Options)

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9010) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and glossy are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints.

The fittings used in the product, like square foot and brace bars, are chrome plated brass alloy.



White painted (In image)
Bright anodized
Grey anodized
Black painted


Choose glass color

(Options)

Choose product size

(Options)

Choose accessories

Product

Product code

Price

1: Infinia 238 (211+213)

238-61-21

0,00 €

2: Infinia 211 Alcove fixed screen
White painted/Transparent/A=253 x 1900

211 61 0023

290,00 €

3: Infinia 213 Alcove folding door
White painted/Transparent/B=585 x 1900

213 61 0056

465,00 €

4:     Magnet handle

913 6L 0002

20,00 €

5:     Magnet handle

913 6L 1001

20,00 €

TOTAL



795,00 €

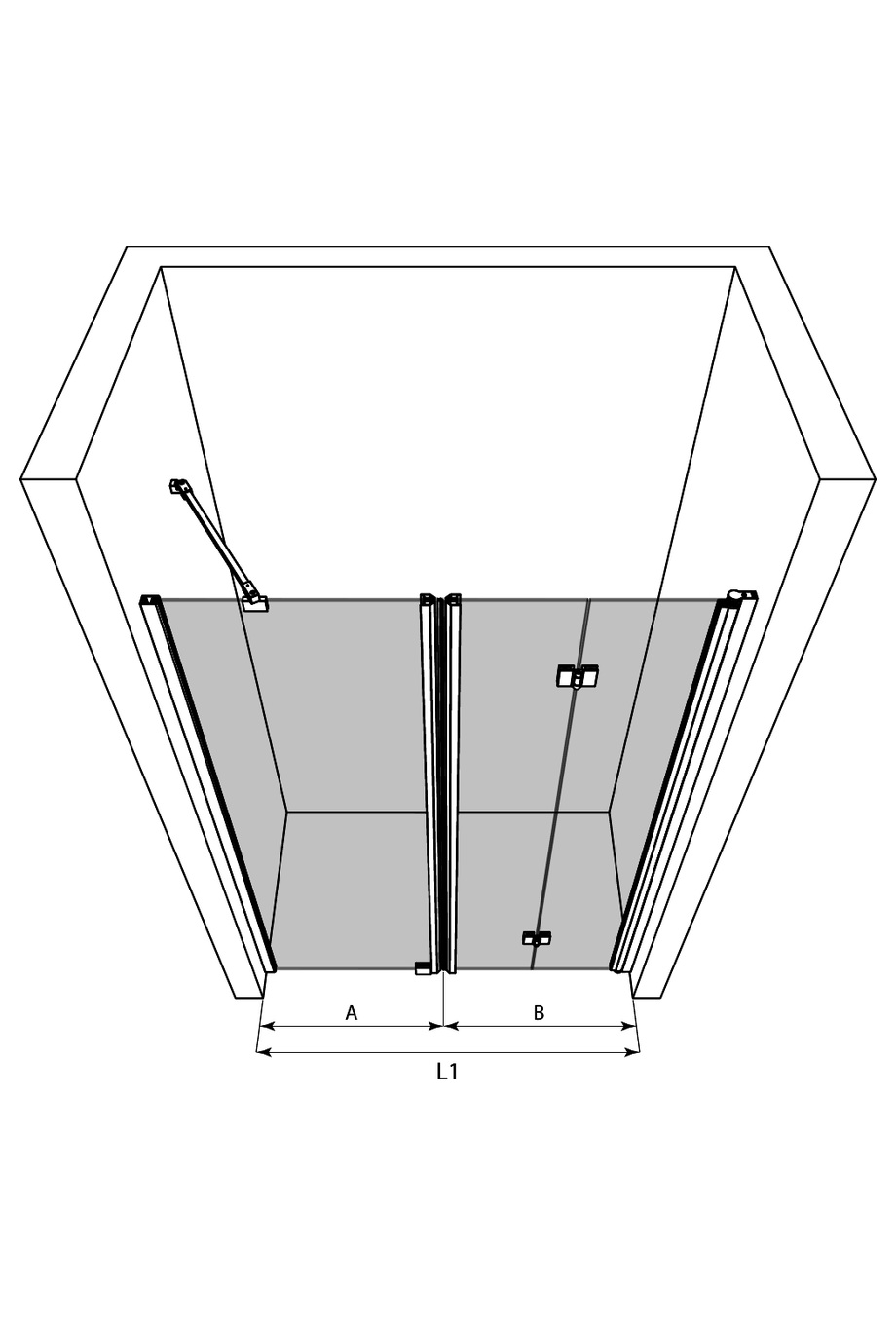

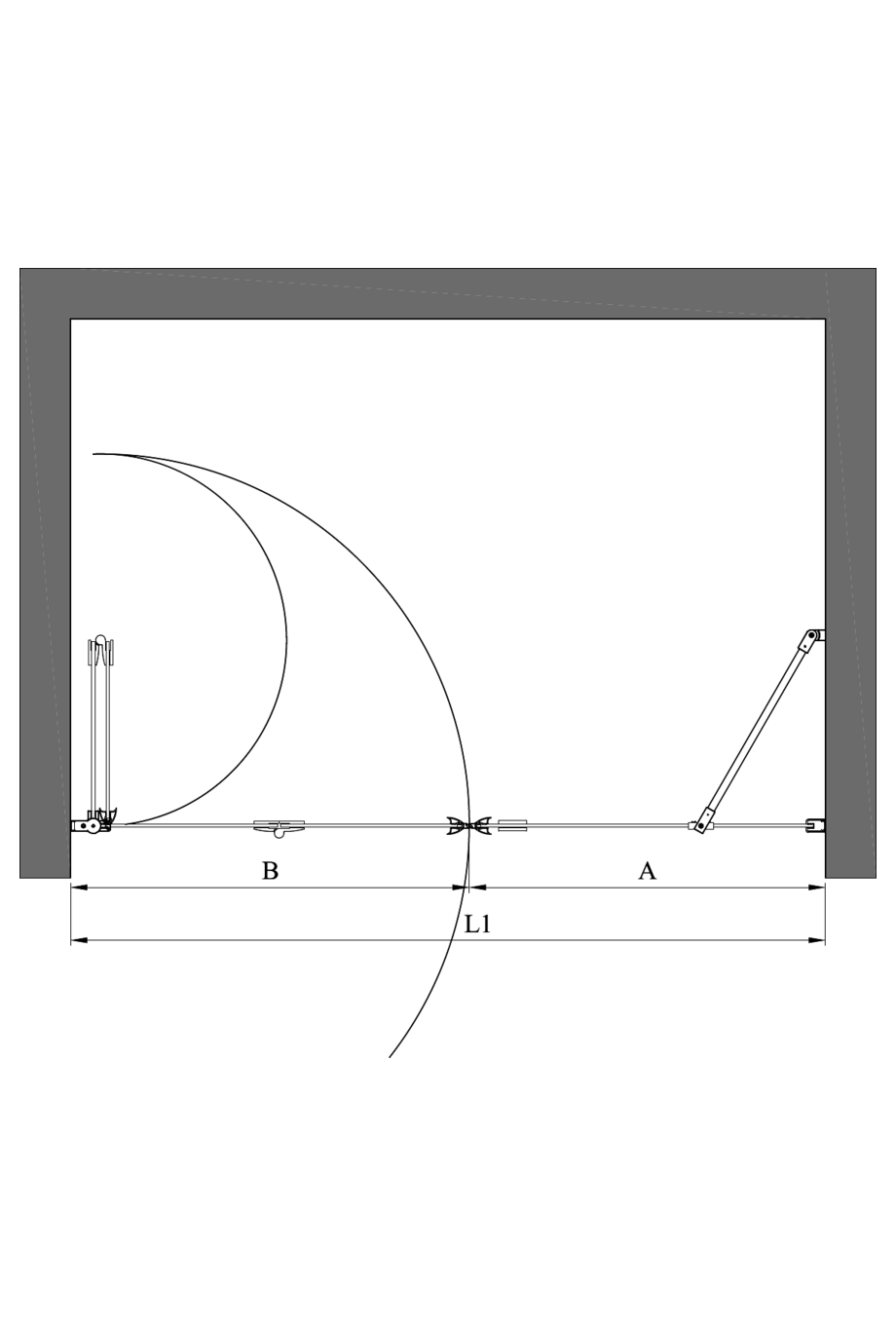

The selected combination can be installed into the opening (L1) the width of which is:

- At is narrowest: 838mm

- At its widest: 873mm

Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building’s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.
